Purity 96-99.5%，Flow rate 20-80L/min
Model: WIND-80
Order NO.: WIND-80
409
Specific parameters will be adjusted according to product upgrades, without notice.

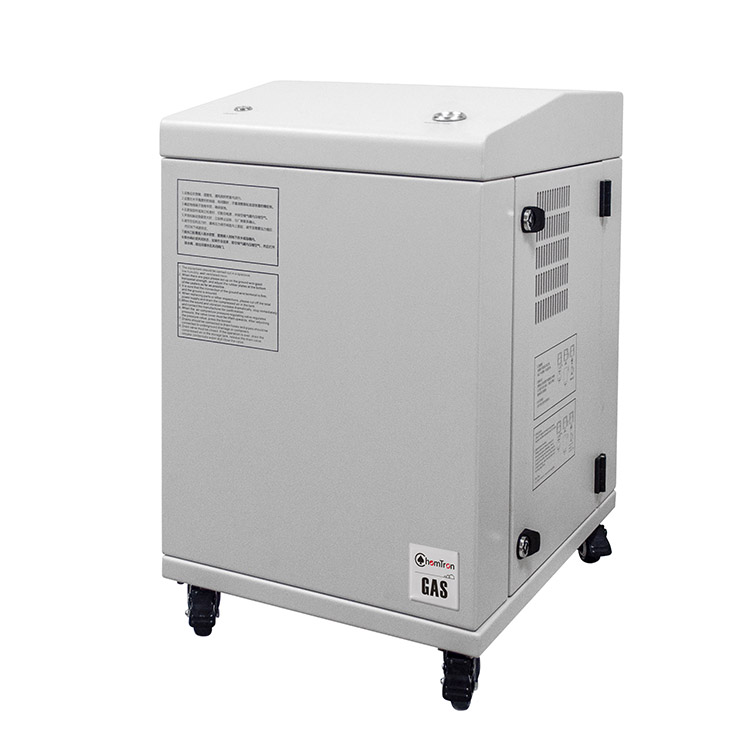

WIND series large flow rate nitrogen gas generator
WIND series nitrogen generator produces high purity and large flow rate nitrogen for all major applications in analytical laboratories.Nitrogen generators eliminate the typical problems associated with the handling of high pressure gastanks and they reduce the cost for high purity Nitrogen immediately.
WIND series features
*New molecular sieve separation and membrane passivation technology
*Built-in air compressor
* Long working life and the separation effect is not attenuated
*Easy to use, and produce gas immediately after turn on the equipment
*Low noise andgood heat dissipation, laboratory environment friendly
Application
* Nitrogen blowing apparatus
*Nitrogen cleaning
*Hot desegregation
*Evaporative light-scattering detector(ELSD)
* Solid phase extraction
Specifications
|
Models |
WIND-80 |
|
Power ( W ) |
3900 |
|
Power（V / Hz） |
380V/50Hz |
|
Purity |
96-99.5% |
|
Flow rate ( L/min ) |
20 ～ 80 |
|
Delivery pressure |
6.9bar（100psi） |
|
Plasticizers (PAEs) |
No |
|
Dew point（℃） |
<-45 |
|
Particle filtration level（μm） |
<0.01 |
|
Environmental humidity（℃） |
0-80% No condensation |
|
Environmental temperature（℃） |
10-35 |
|
Motor speed (rpm) |
1450 |
|
Dimension ( mm ) |
850×720×1065 |
|
Outlet ( mm ) |
8mm |
|
Sound level (dB) |
65 |
